VESevo - E

A fully automated solution for the polymer industry, designed to perform viscoelastic analyses across the entire production line

AUTOMATED • NON-DESTRUCTIVE TESTING • INDUSTRIAL SYSTEM

DISCOVER THE SYSTEMCONTACT US

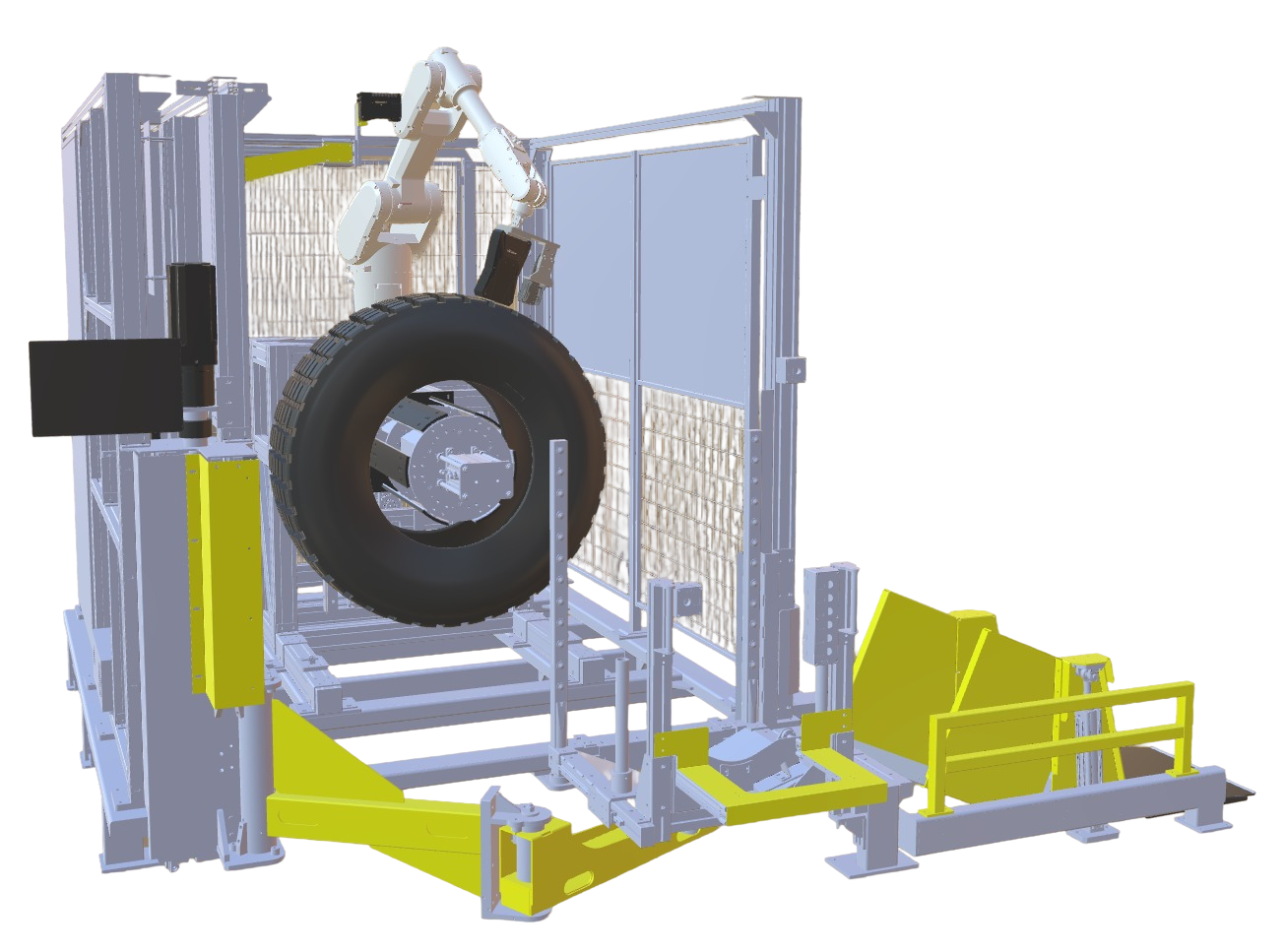

VESevo-E automated industrial station

Viscoelastic characterization across different stages of polymer material production

VESevo - E integrates non-destructive viscoelastic analysis into different stages of polymer material production, supporting material validation, process control and final product verification.

MATERIAL
VALIDATION

Polymeric material samples on an industrial bench

UNCURED COMPOUND CONTROL

Uncured rubber compound

SEMI-FINISHED PRODUCTS
AND COMPONENTS

Rubber tread component

FINAL PRODUCT
QUALITY CONTROL

Finished tire

INSIDE VESevo - E

Explore the systems behind the automated measurement process.

VESevo-E station with component positions

THE CORE TECHNOLOGY AT THE END OF THE ROBOTIC ARM

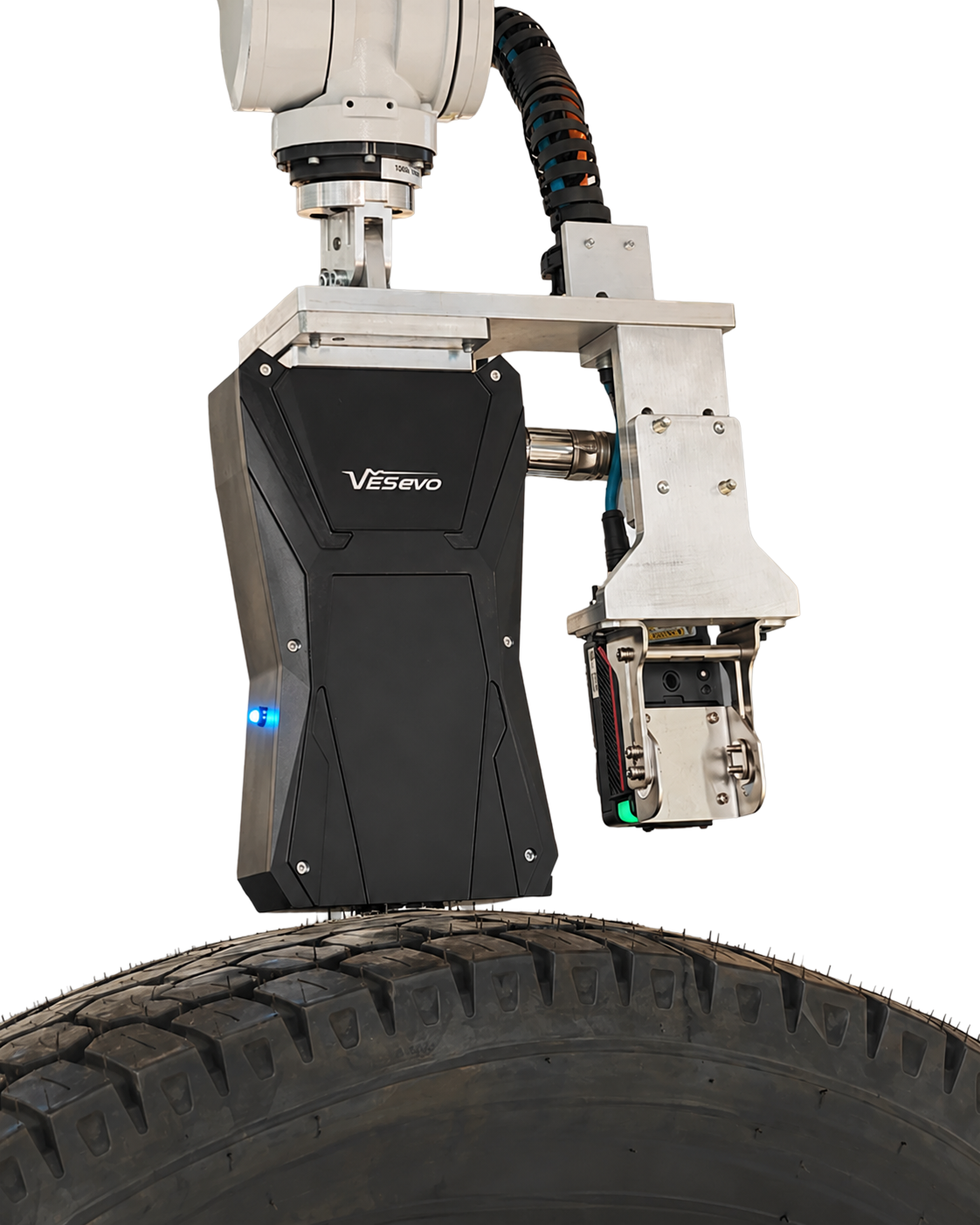

At the end of the robotic manipulator, the End Effector represents the core of the technology, integrating the Industrial VESevo device and the camera used during the product angular zeroing phase.

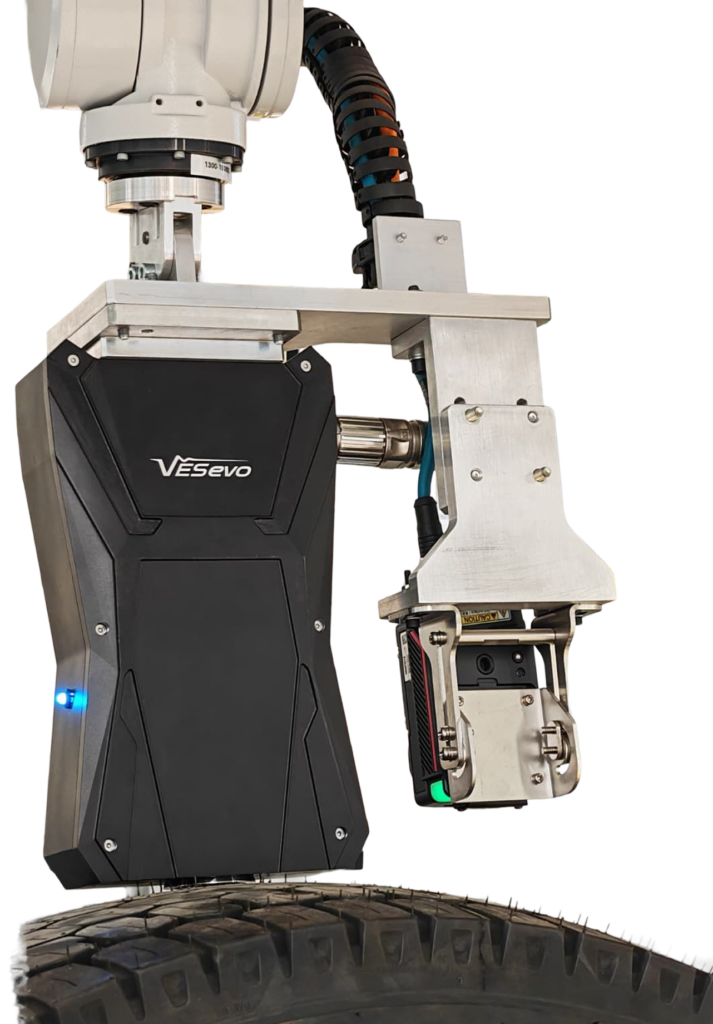

End Effector assembly
END EFFECTOR ASSEMBLY

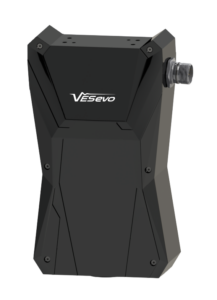

Industrial VESevo device
INDUSTRIAL VESevo DEVICE

KEY FEATURES

  • AUTOMATED MEASUREMENT
  • REPEATABILITY
  • NON-DESTRUCTIVE PRODUCT TESTING
  • FLEXIBLE DEPLOYMENT

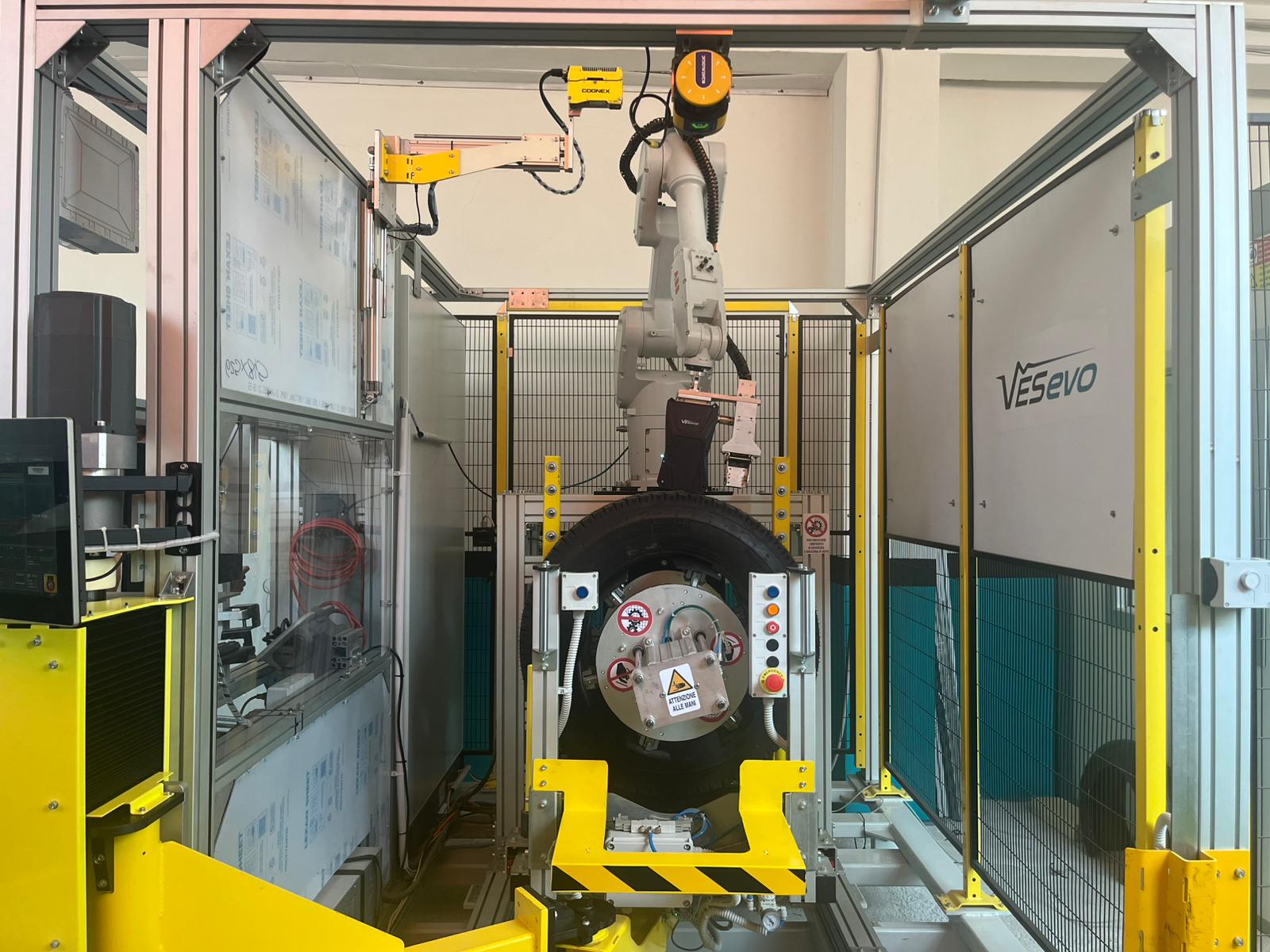

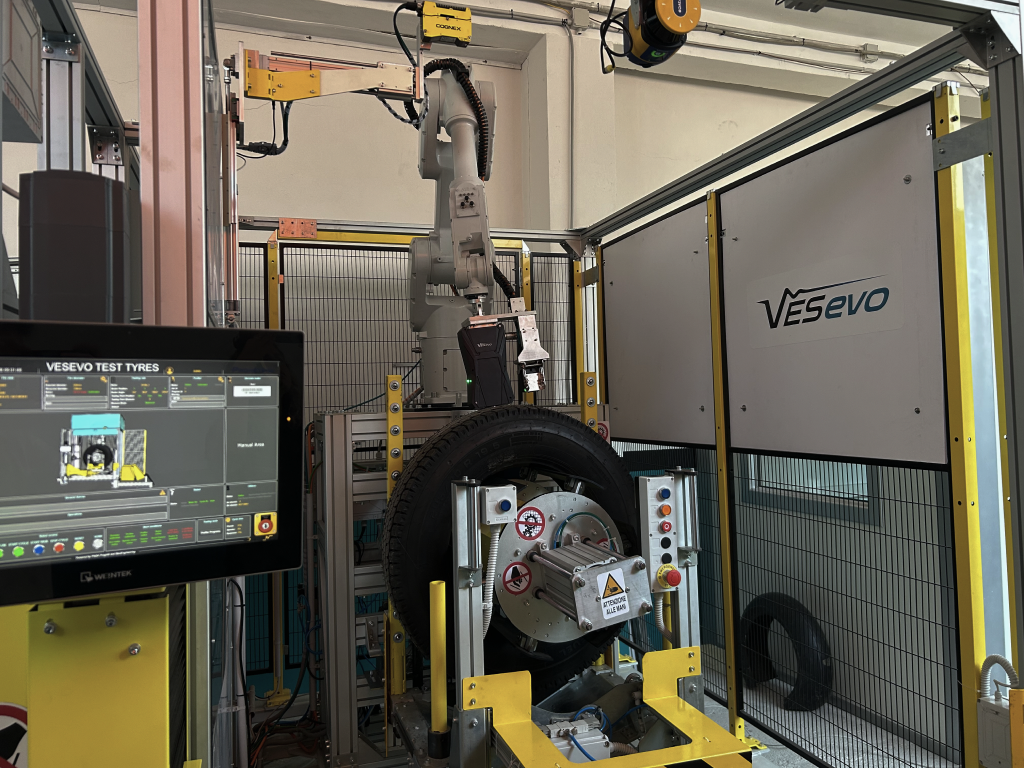

VESevo-E industrial station in operation
  • PROCESS TRACEABILITY
  • PREDICTIVE-MAINTENANCE SUPPORT
  • INDUSTRIAL INTEGRATION
  • MULTIPLE HMIS
DESIGNIndustrial equipment compliance, Fully automated measurement tool
DIMENSIONS4040x4203x2900 mm, customizable to meet customer requirements, subject to the system’s capabilities.
CONNECTIVITYProprietary interface, RS-485 serial protocol
HARDWARE FEATURESFull automatic actuation, 6 DoF robot compatibility, High-repeatability indentation mechanism, Zero-friction durability system, 3D vision system, AI camera
MEASURABILITYINDENTATION
Frequency Range [Up To 80 kHz]
Stiffness [3.0*10^3 N/M, 2.5*10^6 N/M]
Relaxation Length [Up To 2.0X10-3 M]
TEMPERATURE
Measurement Range [-10,50] °C
Resolution 0.02 °C
Accuracy 0.5 °C
ELECTRONIC CAPABILITIES- Onboard Measurement Diagnostics
- Onboard Evaluation Of Material Properties
- Hard real-time signal progressing for industrial applications
POWER SUPPLYProprietary Connector: 12V, 1A for power supply; 24V for DI/DO
WHY VESevo ETo automate VESevo technology, remove human error from the acquisition process, increase measurement capabilities, and enable fast, automated and structured quality control at the end of the production line.
