performance

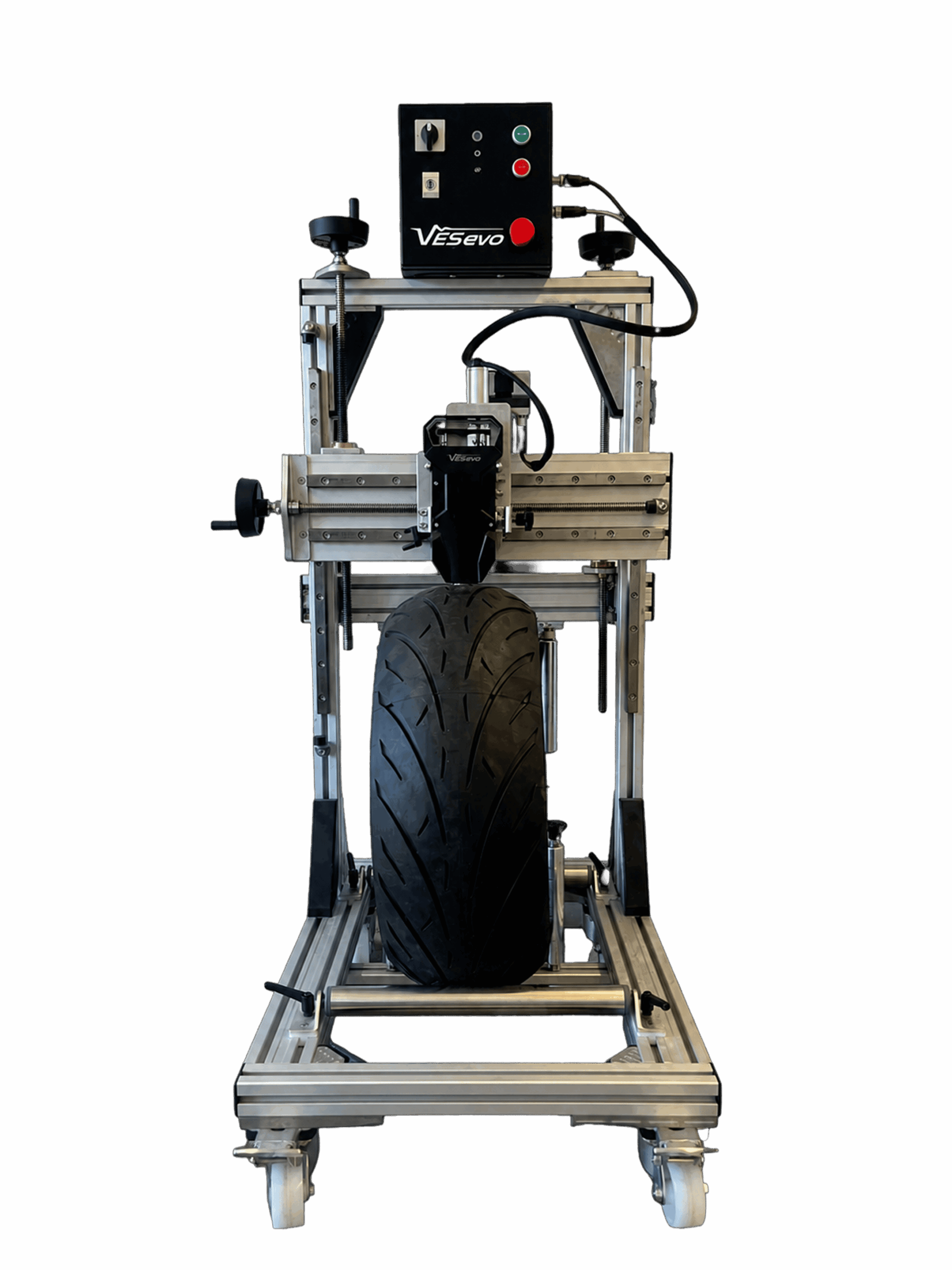

VESevo Test Bench Pro
A semi-automated system to improve and speed up the VESevo testing phase
BORN FOR
Improve and speed up the VESevo testing technology
KEY FEATURES
Customizable, modular and configurable to adapt to any kind of tire
MAIN SCOPE
Automatization of the handling system for the VESevo support
DESIGN
- VESevo compatibility
- Reliability
- Embedded electronics
- Dedicated software
- Aluminium Frame
WHY VESevo TEST BENCH PRO
- Semi-automated system compatibility
- Improve efficienty and efficacy
- Speed test
- Reduce the error caused by human intervention.
- Customizable
- Modular
MEASURABILITY
- Indentation
- Viscoelastic properties
- Temperature
| DESIGN | VESevo compatibility, Reliability, Embedded electronics, Dedicated software |
| DIMENSION & WEIGHT | 600x800x1500 mm, 80 kg |
| SUPPLY VOLTAGE, FREQUENCY | 220 Volt 50 Hz |
| MAX TIRE DIAMETER, MAX TIRE WIDTH | 800 mm 500 mm |
| CONNECTIVITY | USB RS232 |
TEST BENCH BASE LINE | TEST BENCH PRO |
|
| AUTOMATED TESTING |  | |
| FRAME | Steel | Aluminum |
| MODULAR STRUCTURE |  | |
| VERTICAL AND HORIZONTAL AXIS MOVEMENT | | |
| DEVICE ROTATION | | |
| FLEXIBILITY AND SCALABILITY | | Customizable |
