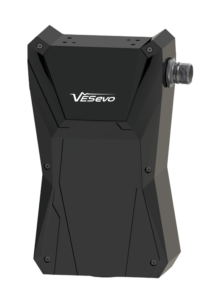

VESevo - E

Automatic data acquisition and onboard processing for viscoelastic characterization

CONTACT US
watch the video
MEASURE OUTPUT

ready-to-use KPIs for evaluating the tire’s viscoelastic properties mapped across the tire surface.

KEY FEATURES

automated analysis of compatible tires, providing onboard-processed data for a complete qualitative overview.

MAIN SCOPE

quality control and predictive maintenance

DESIGN
  • Embedded electronics
  • End-effector fitting interface
  • LED status indicators
WHY VESevo E
  • The most powerful and fully automated version of VESevo technology
MEASURABILITY
  • Indentation
  • Viscoelastic properties
  • Temperature
DESIGNIndustrial equipment compliance, Fully automated measurement tool
DIMENSIONS4040x4203x2900 mm, customizable to meet customer requirements, subject to the system’s capabilities.
CONNECTIVITYProprietary interface, RS-485 serial protocol

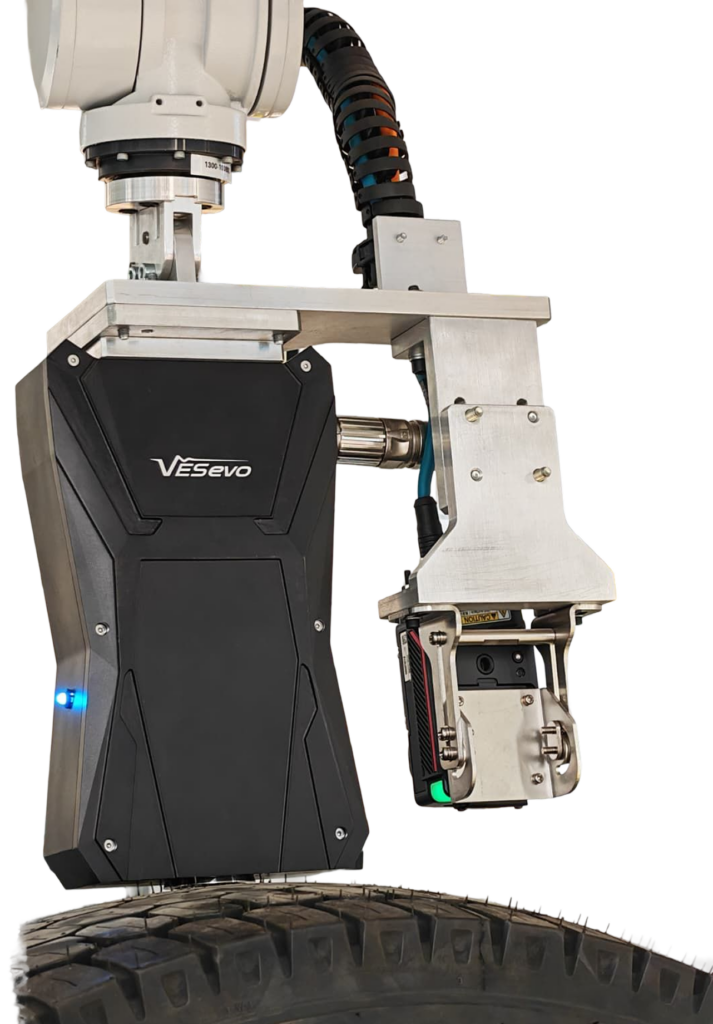

HARDWARE FEATURESFull automatic actuation, 6 DoF robot compatibility, High-repeatability indentation mechanism, Zero-friction durability system, 3D vision system, AI camera
MEASURABILITYINDENTATION
Frequency Range [Up To 80 kHz]
Stiffness [3.0*10^3 N/M, 2.5*10^6 N/M]
Relaxation Length [Up To 2.0X10-3 M]
TEMPERATURE
Measurement Range [-10,50] °C
Resolution 0.02 °C
Accuracy 0.5 °C
ELECTRONIC CAPABILITIES- Onboard Measurement Diagnostics
- Onboard Evaluation Of Material Properties
- Hard real-time signal progressing for industrial applications
POWER SUPPLYProprietary Connector: 12V, 1A for power supply; 24V for DI/DO
WHY VESevo ETo automate VESevo technology, remove human error from the acquisition process, increase measurement capabilities, and enable fast, automated and structured quality control at the end of the production line.
